Flow chart: De-coiler — De-coiler – Feeding and Leveling device – Pre-punching & cutting system – Roll Forming System – Hydraulic Cutting – Hydraulic station – PLC – Cutting Product Support
Product Spec
Variable size C
-Width in Any size within 80-300mm
-Height 30-100mm
-Lips 10-25mm & Variable size Z
-Width in Any size within 120-300mm
-Height 30-100mm
-Lips 10-25mm
|
Machine Specifications |
|
|
Weight |
About 13 tons |
|
Size |
About 11.5m x1.65m x 1.7m (length x width x height) |
|
Color |
Main color: blue |
|
Warning color: yellow |
|
|
Suitable Raw Material |
|
|
Material |
cold rolled coil , hot rolled coil, galvanized coil |
|
Thickness |
1.0-3.0mm |
|
Coil width |
According to products size |
|
Yield strength |
Q195,Q235,Q345 |
|
Main Technical Parameters |
|
|
Quantity of forming rollers stations |
21 Stations |
|
Diameter of rollers |
Φ320MM |
|
Diameter of shafts |
ø75/ø90mm |
|
Roll Forming Speed |
0-30m/min |
|
Production Speed |
12-18m/min(depends on quantity of punching) |
|
Forming rollers material |
CR12 mould steel, with quenched treatment |
|
Cutter material |
CR12 mould steel, with quenched treatment |
|
Controlling system |
PLC and Converter |
|
Electric power requirement |
Main motor power: 22KW |
|
Hydraulic unit motor power: 7.5KW |
|
|
Electric voltage |
According to customers requirement |
Main Components:
- Mechanical De-coiler
De-coiler Type: by manual
Weight capacity: 5T
- Feeding and Leveling Device: It used for making the material flat before feeding into the roll forming machine.
- Pre-punching device
Punching type: by hydraulic
Punching quantity: total 3 sets cylinders 6holes. (Can be increased by customize)
- Pre-shearing
It used to cut raw materials before roll forming.

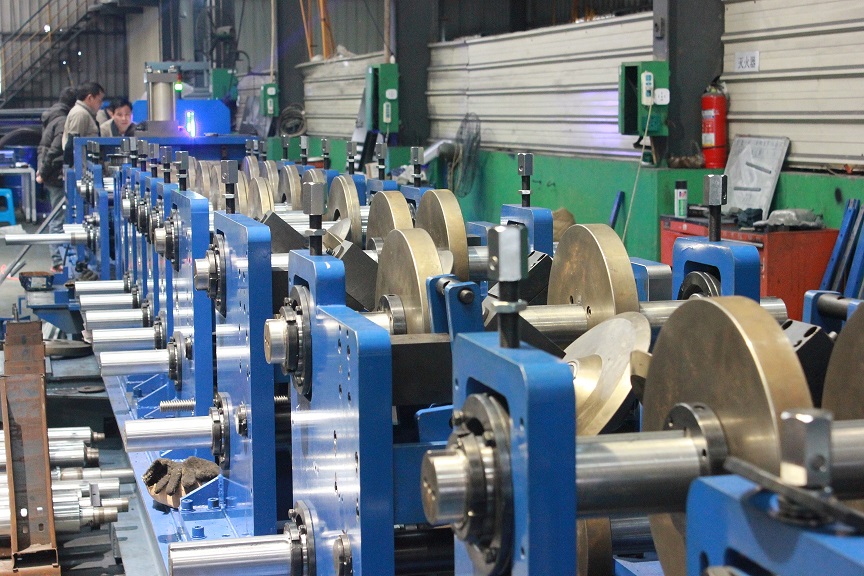

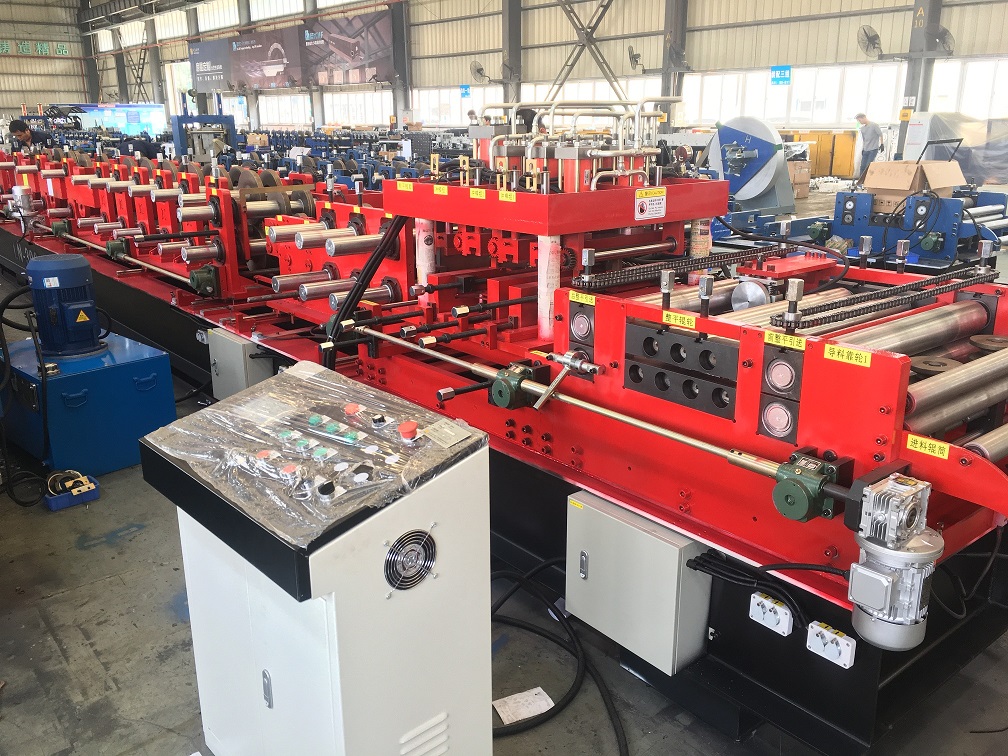

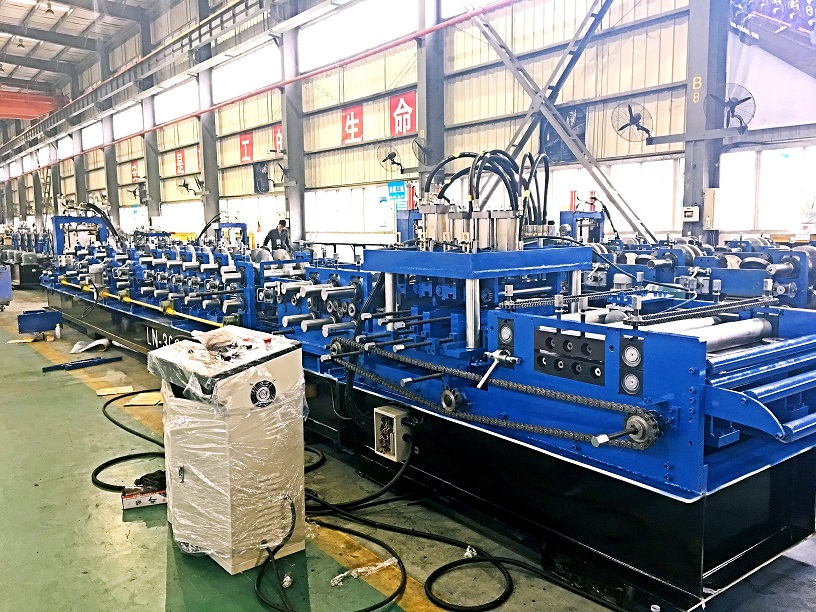

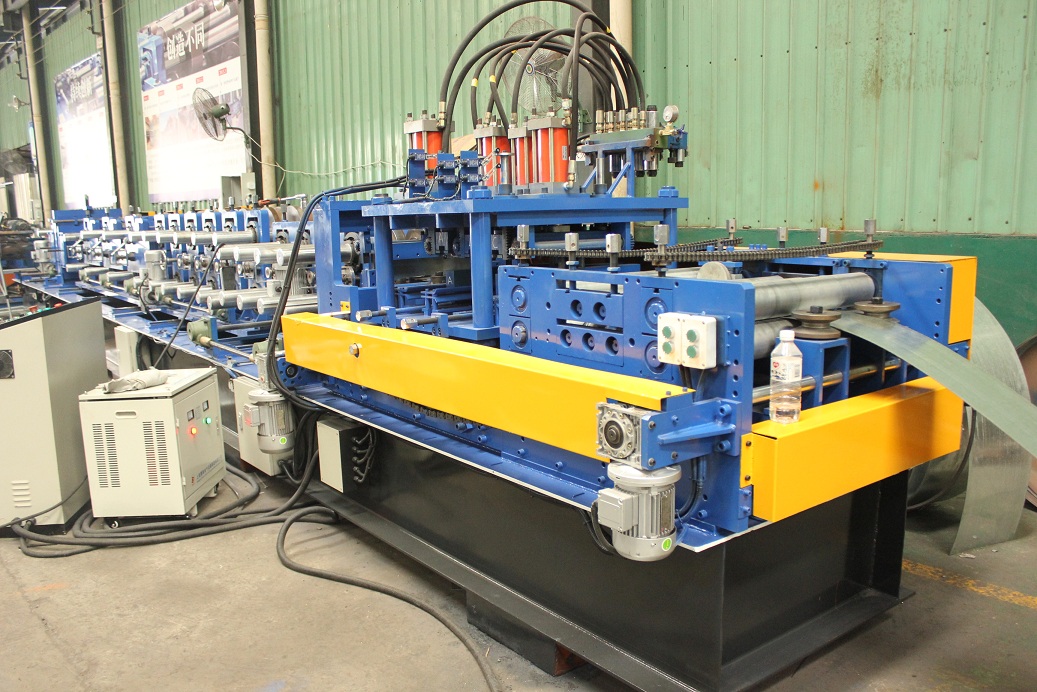

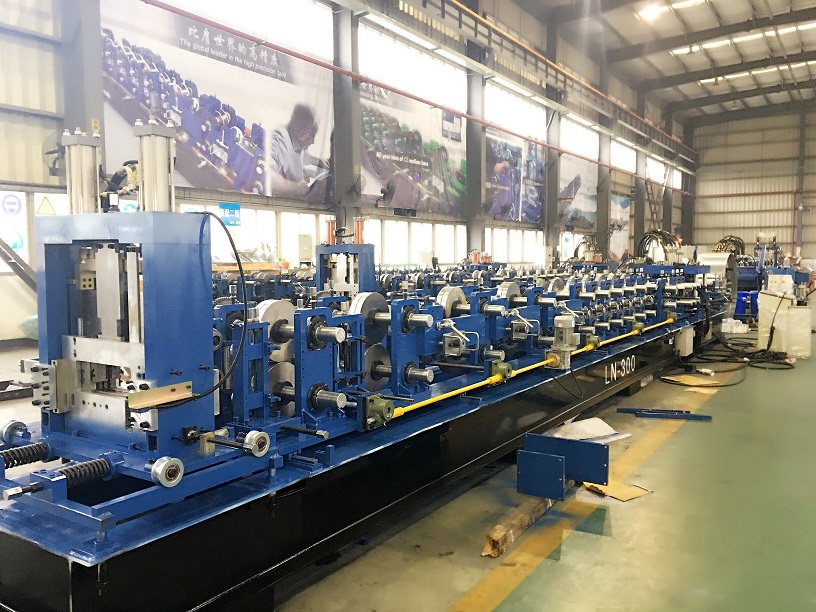

5.Main roll former
Driven type: By gear boxes
Speed of forming: 0-30m/min
Working Speed: 12-18m/min
Roller: About 21 groups rollers
Roller Material is Cr12 mould steel;
Shaft: Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product. Material of main shaft is 40Cr.
Changing sizes: Full-automatic (change sizes automatically by PLC control, pressing button is compatible)
Adopt fast C/Z interchanging system
Quick C/Z interchanging only with 3 steps,around 5mins.

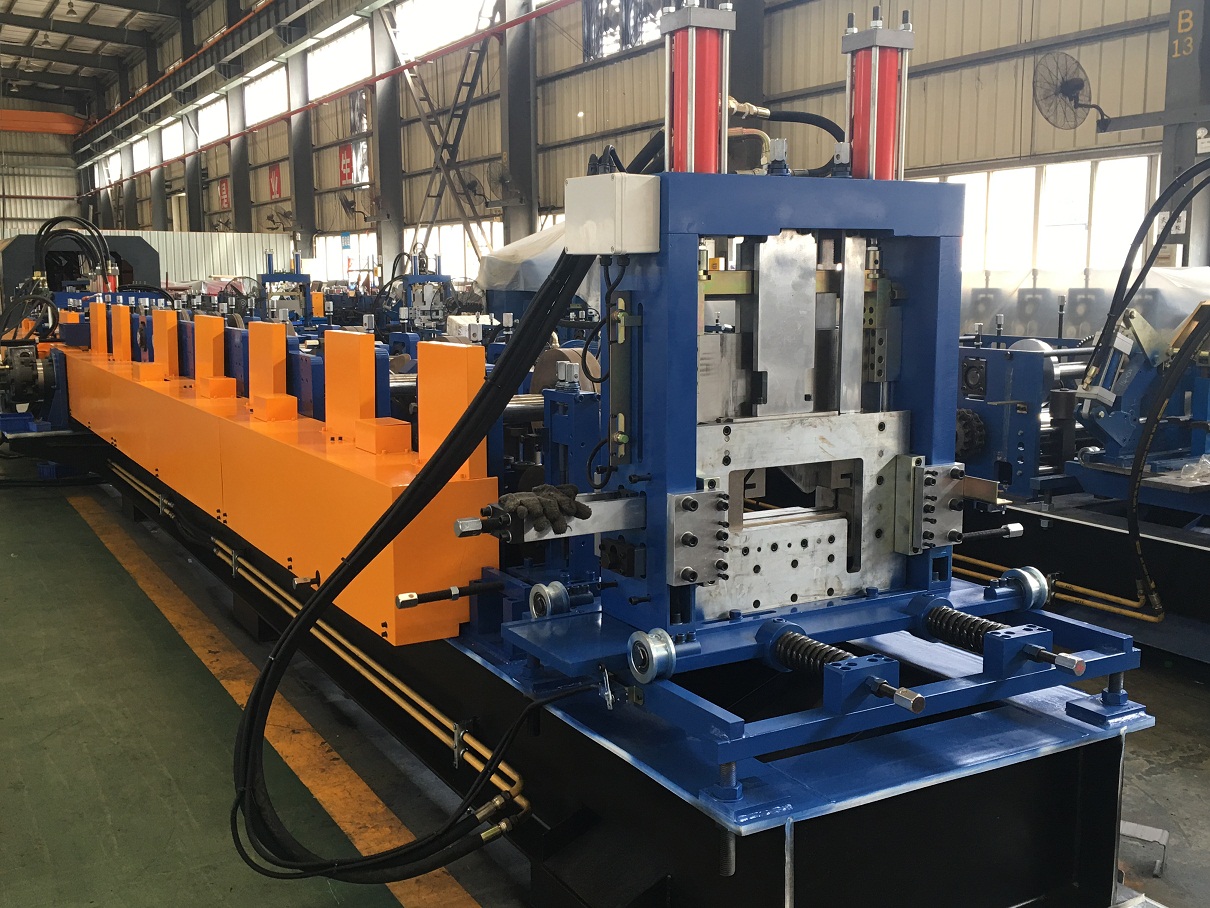

- Hydraulic Post- cutting
No need to replace the cutting blades when purlin sizes are changed.
- Product support frame
- PLC Control System
