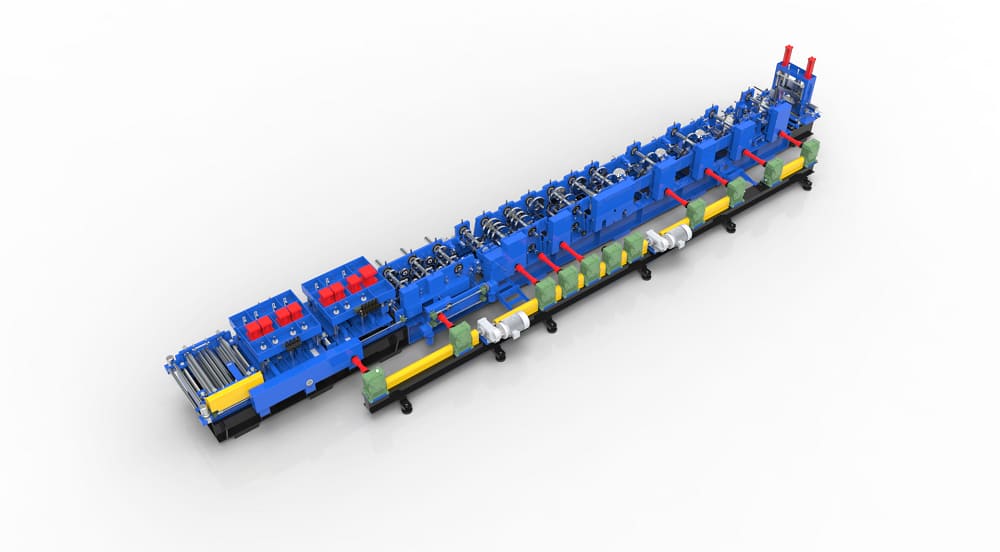

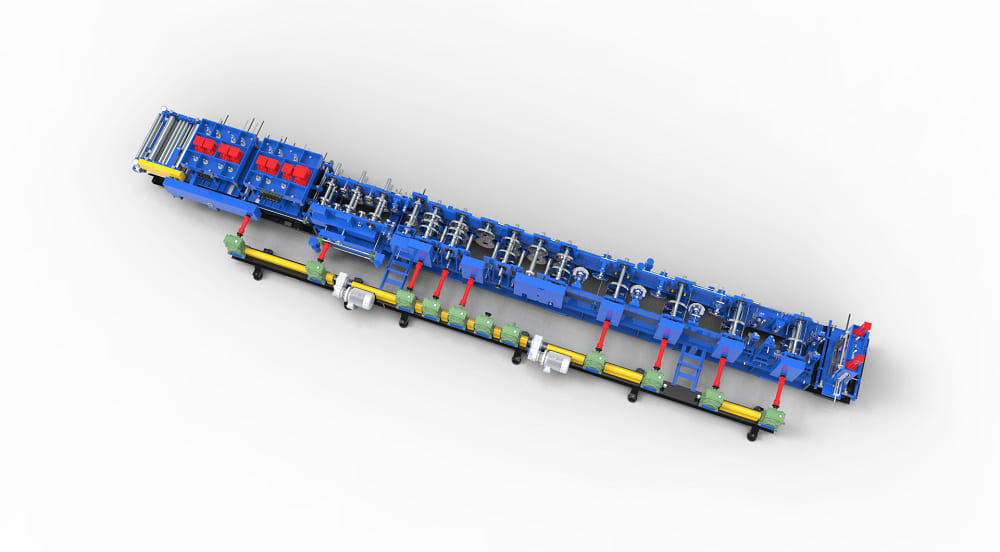

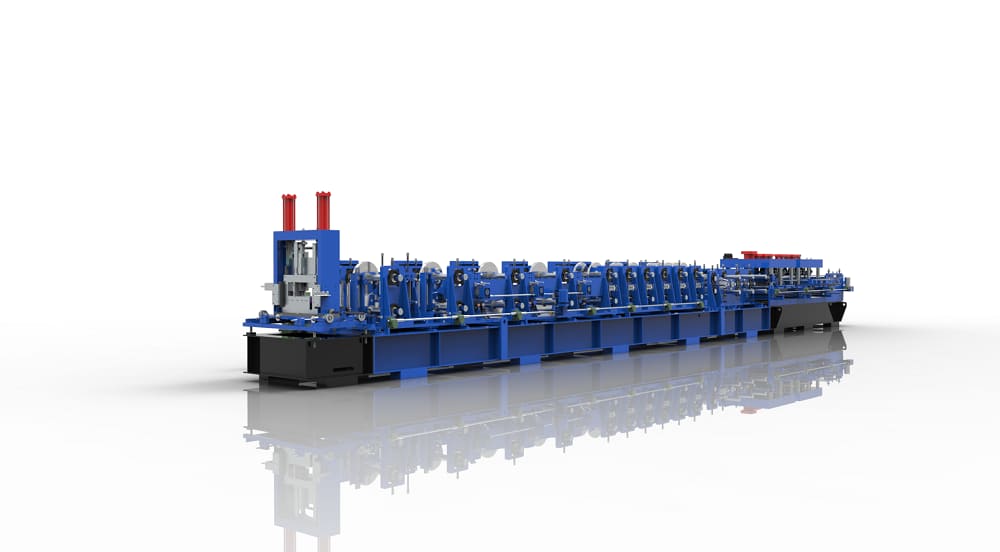

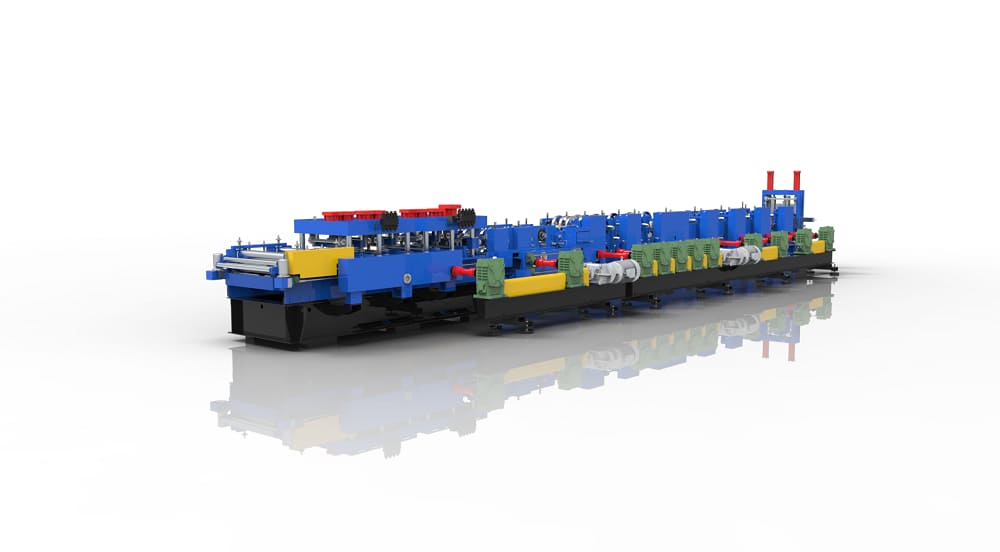

Automatic C/Z Purlin Roll Forming Machine FX450

DETAILS

Flow chart: De-coiler – Leveling device — roll forming parts—Post punching device—Hydraulic cutting – stack

Purlin size:

Machine Specifications
Weight	About 34tons
Size	About 28m x 3.3m x 2.4m (length x width x height)
Color	Main color: blue
Color	Warning color: yellow
Suitable Raw Material
Material	cold rolled coil , hot rolled coil, galvanized coil
Thickness	1.0-4.5mm
Coil width	According to products size
Yield strength	350Mpa~550Mpa
Main Technical Parameters
Quantity of forming rollers stations	24 Stations
Diameter of rollers	φ456MM
Diameter of shafts	φ108/φ90MM
Roll Forming Speed	35m/min
Production Speed	12-18m/min(depends on quantity of punching)
Forming rollers material	CR12 mould steel, with quenched treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric power requirement	Main motor power: 18.5KW*2sets
Electric power requirement	Hydraulic unit motor power: 11KW
Electric voltage	According to customers requirement

Main Components:

De-coiler Type: by automatic

Weight capacity: 10T

Feeding and Leveling Device: It used for making the material flat before feeding into the roll forming machine.
Pre-punching device

Punching type: by hydraulic

Punching quantity: total 3 sets cylinders 6holes. (Can be inreased by customizable)

It used to cut raw materials before roll forming.

5.Main roll former

Driven type: By gear boxes

Speed of forming: 0-35m/min

Working Speed: 12-18m/min

Roller: About 24 groups rollers

Roller Material is Cr12 mould steel;

Shaft: Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product. Material of main shaft is 40Cr.

Changing sizes: Full-automatic (change sizes automatically by PLC control, pressing button is compatible)

Adopt fast C/Z interchanging system

Quick C/Z interchanging only with 3 steps,around 5mins.

No need to replace the cutting blades when purlin sizes are changed.
