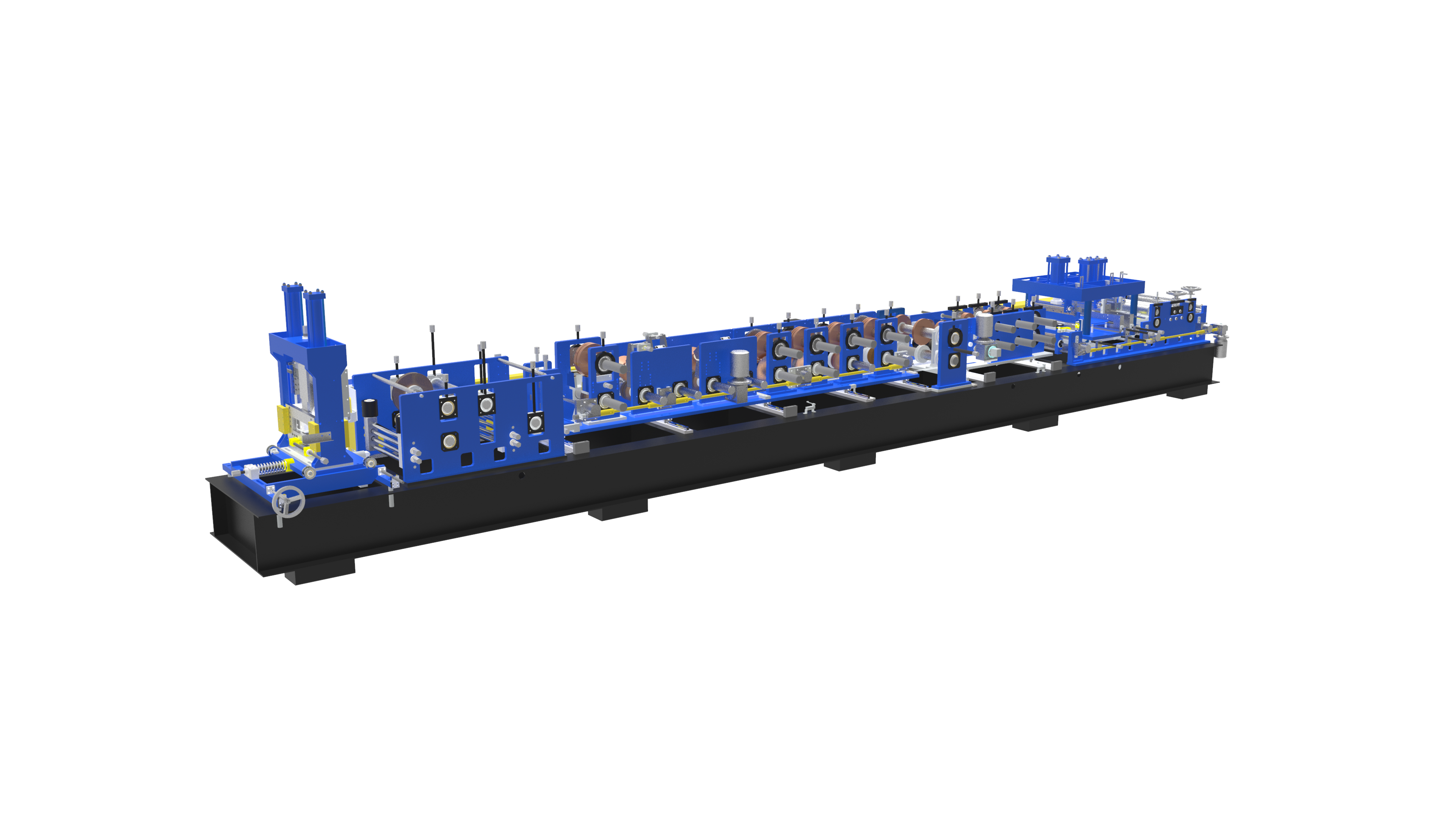

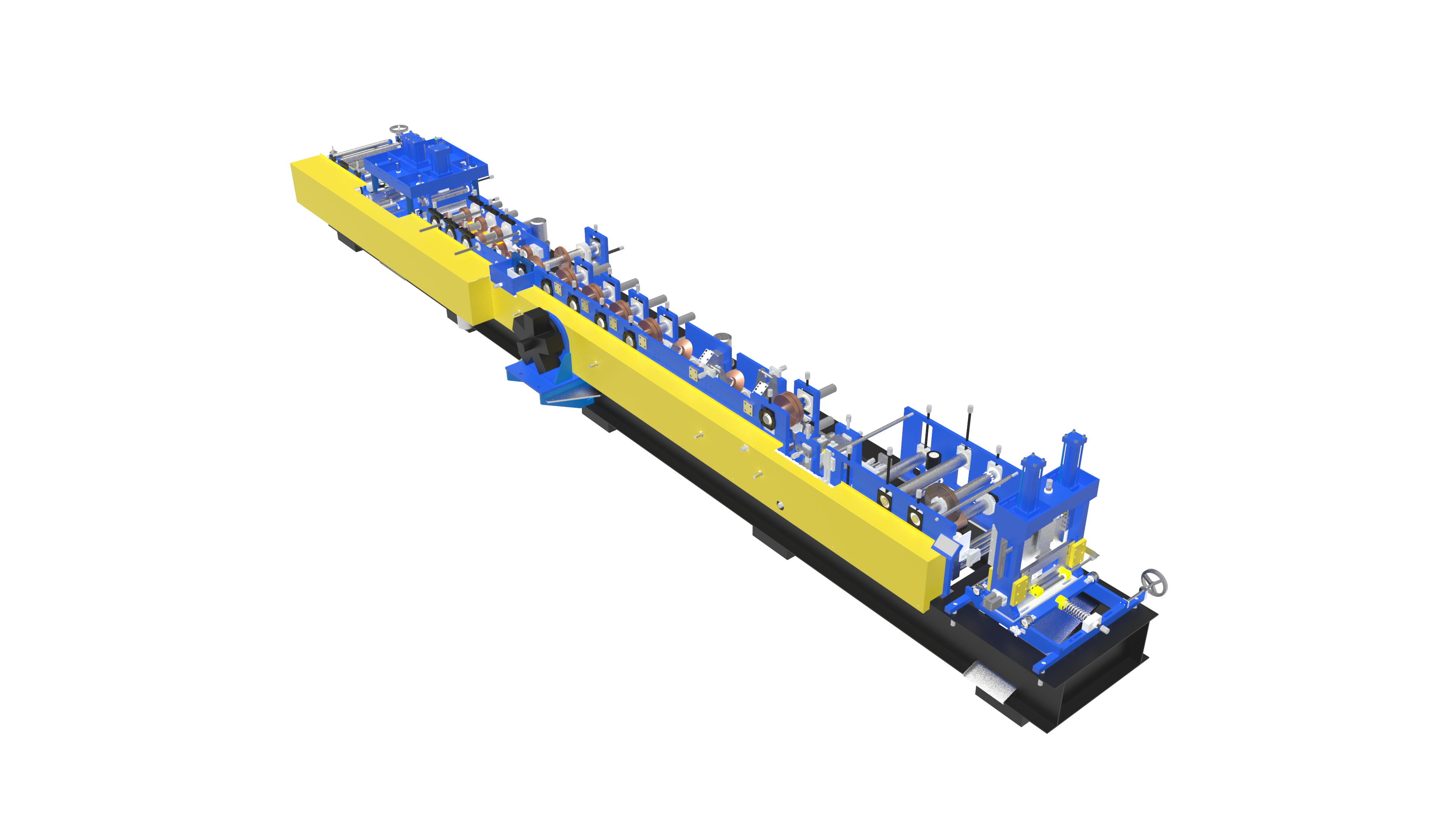

C Purlin Roll Forming Machine LS300

DETAILS

Flow chart: Decoiler→ Feeding and leveling →Pre-cutting →Roll forming→ Post cutting→ Hydraulic cutting→ product support frame

Product Spec

Machine Specifications
Weight	About 8500 KG
Size	About 11.5m x1.65m x 1.7m (length x width x height)
Color	Main color: blue
Color	Warning color: yellow
Suitable Raw Material
Material	cold rolled coil , hot rolled coil, galvanized coil
Thickness	1.0-3.0mm
Coil width	According to products size
Yield strength	Q195,Q235,Q345
Main Technical Parameters
Quantity of forming rollers stations	15-16 Stations
Diameter of rollers	Φ160MM
Diameter of shafts	ø75/ø80mm
Roll Forming Speed	0-25m/min
Production Speed	12-16m/min(depends on quantity of punching)
Forming rollers material	CR12 mould steel, with quenched treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric power requirement	Main motor power: 18.5KW
Electric power requirement	Hydraulic unit motor power: 7.5KW
Electric voltage	According to customers requirement

Main Components:

De-coiler Type: by manual

Weight capacity: 4T

Feeding and Leveling Device: It used for making the material flat before feeding into the roll forming machine.
Pre-punching device

Punching type: by hydraulic

Punching quantity: total 2sets cylinders 4holes. (Can be increased by customize)

It used to cut raw materials before roll forming.

5.Main roll former

Driven type: By gear boxes

Speed of forming: 0-25m/min

Working Speed: 12-16m/min

Roller: About 15 groups rollers

Roller Material is Cr12 mould steel;

Shaft: Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product. Material of main shaft is 40Cr.

Changing sizes: Full-automatic (change sizes automatically by PLC control, pressing button is compatible)

No need to replace the cutting blades when purlin sizes are changed.
