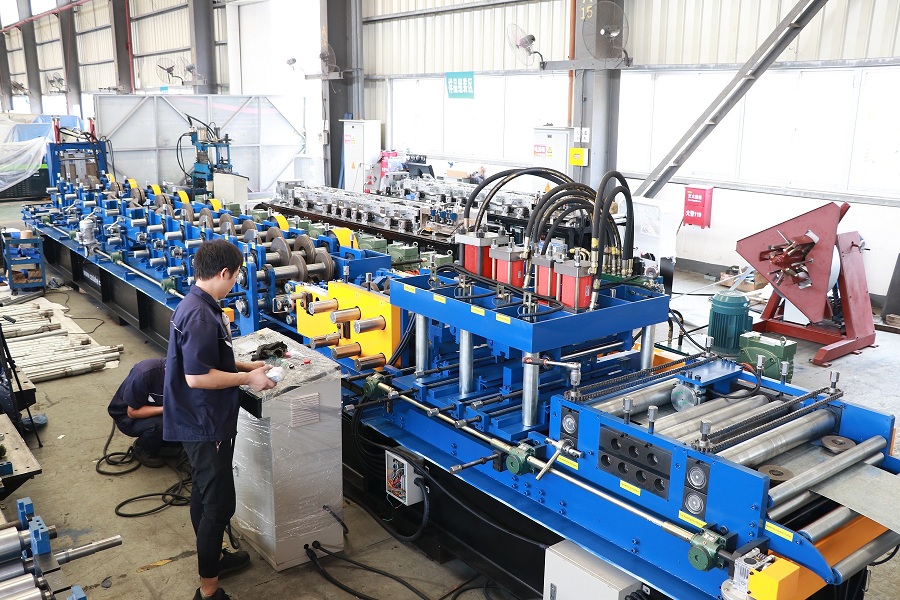

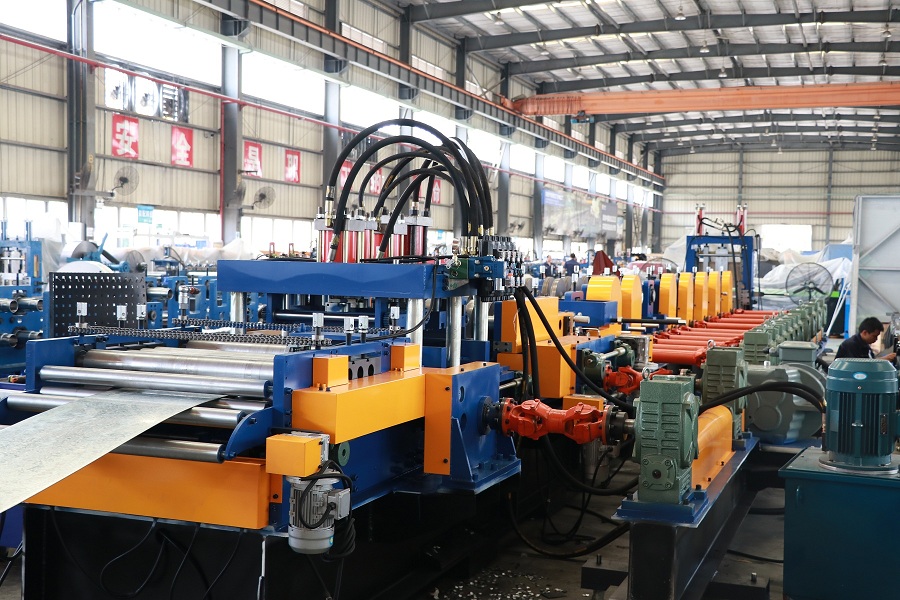

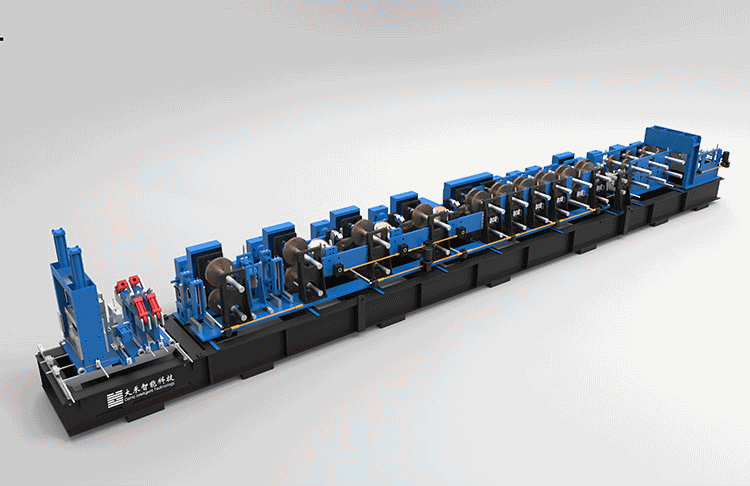

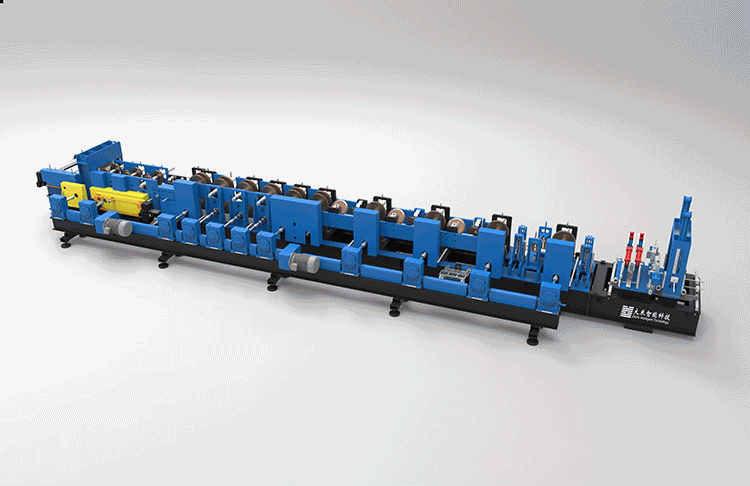

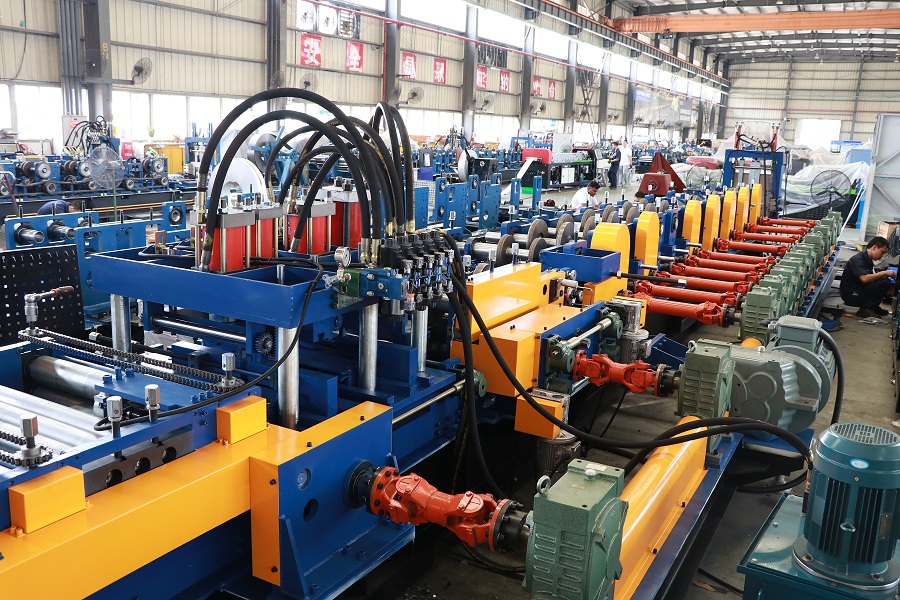

Full Automatic C/Z Purlin Roll Forming Machine FX350

Features of C/Z purlin machine:

Flow chart: De-coiler – Leveling device — pre- punching and pre-cutting – roll forming parts – stack

Purlin size:

Main Components:

1. Hydrulic De-coiler

De-coiler Type: by automatic

Weight capacity: 8T

2. Feeding and Leveling Device: It used for making the material flat before feeding into the roll forming machine.
3. Pre-punching device

Punching type: by hydraulic

Punching quantity: total 3 sets cylinders 6holes. (Can be increased by customize)

4. Pre-shearing

It used to cut raw materials before roll forming.

5.Main roll former

Driven type: By gear boxes

Speed of forming: 0-30m/min

Working Speed: 12-18m/min

Roller: About 23 groups rollers

Roller Material is Cr12 mould steel;

Shaft: Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product. Material of main shaft is 40Cr.

Changing sizes: Full-automatic (change sizes automatically by PLC control, pressing button is compatible)

Adopt fast C/Z interchanging system

Quick C/Z interchanging only with 3 steps,around 5mins.

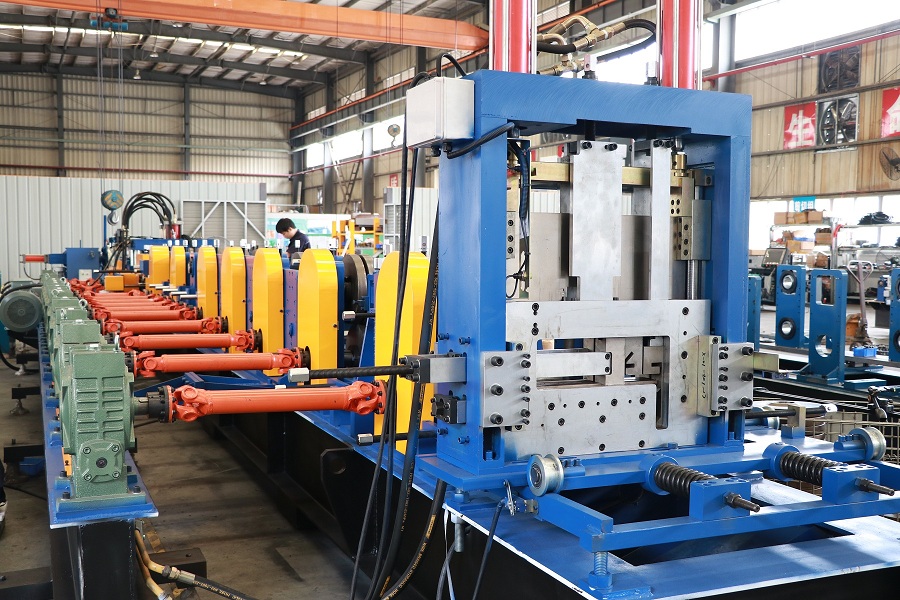

6. Hydraulic Post- cutting

No need to replace the cutting blades when purlin sizes are changed.

7. Product support frame
8. PLC Control System
